Description

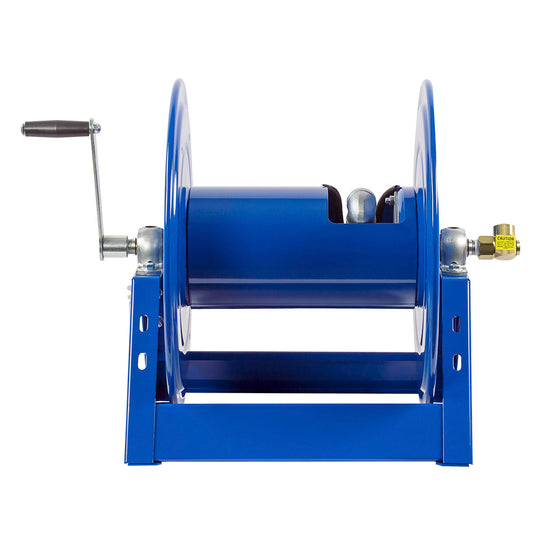

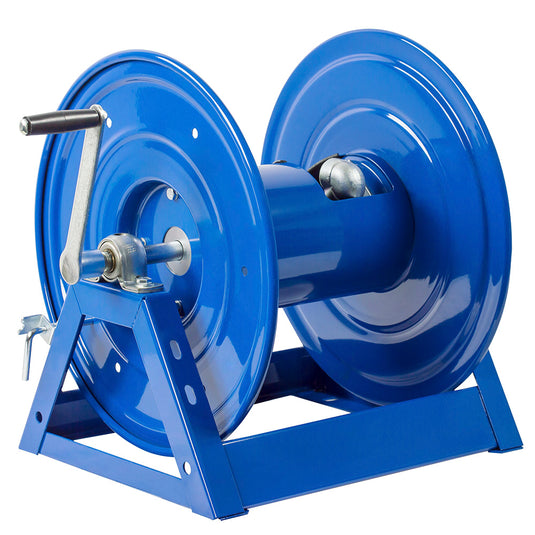

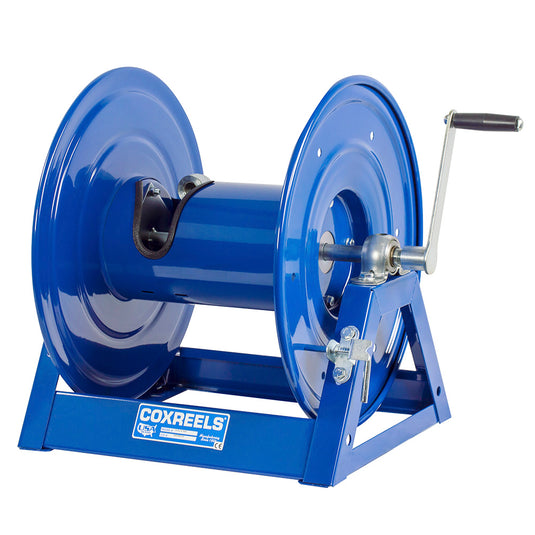

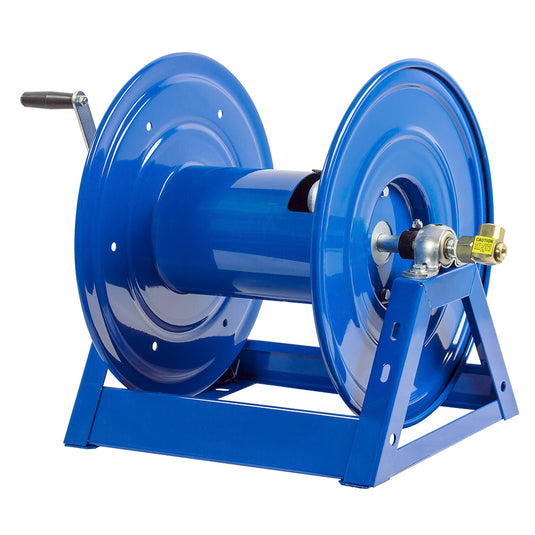

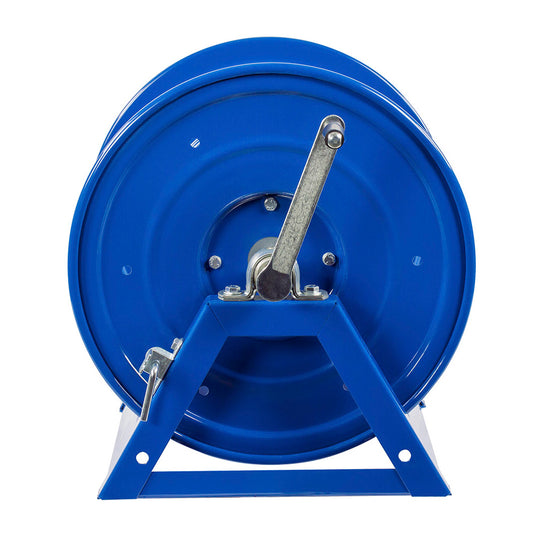

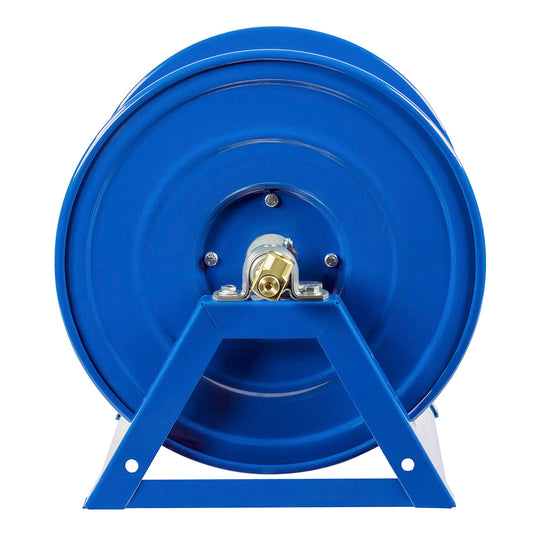

COXREELS® 1125 Series hand crank hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
Features
Swivel
- External fluid path with machined solid brass 90° full-flow NPT swivel
Nickel plated steel swiven on 1" models
Design & Structure
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
- Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation.
- Long-handled locking pin to secure reel from rotation during transport
Retraction
Solid steel direct hand crank with smooth round handle.
Also available in motorized options.
Signature Features
Professional grade heavy duty steel construction.
Rolled edges & ribbed discs provide strength & safety.
Leading 2-year manufacturer's limited warranty.
Made in the U.S.A. - Sold & Supported Worldwide.
SWIVEL - Electroless nickel plated steel 90º full-flow NPT swivel inlet.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust
Specifications
| Hose Inner Diameter (I.D.) | 1/5" |
| Hose Outer Diameter (O.D.) | 7/8" |
| Hose Length Capacity | 325FT |
| Max. PSI | 3,000 |
| Weight | 48 LBS. |
Warranty
Product sales are final.
Manufacturing defects are covered by 2-year manufacturer warranty.
