Description

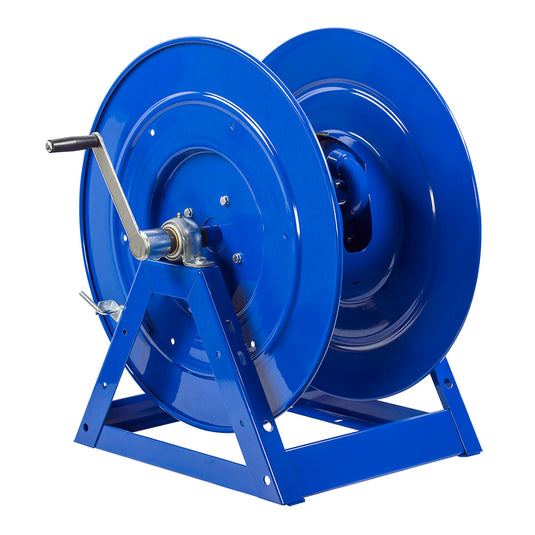

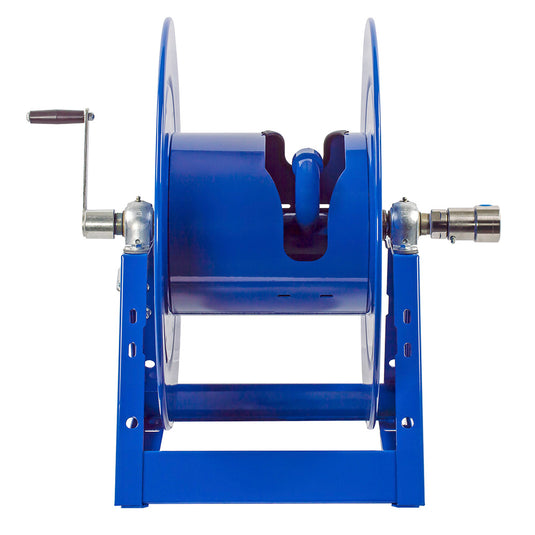

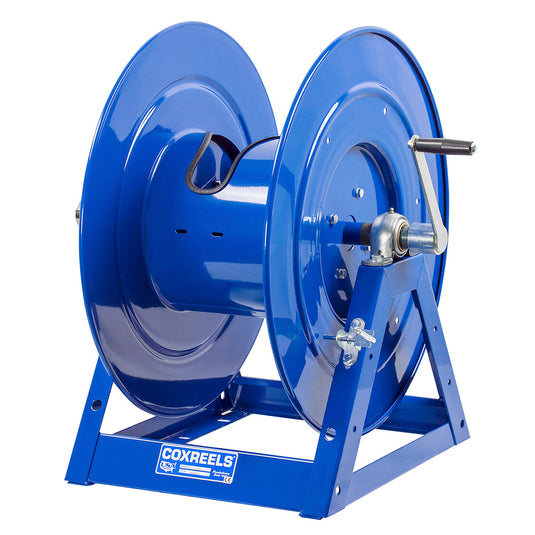

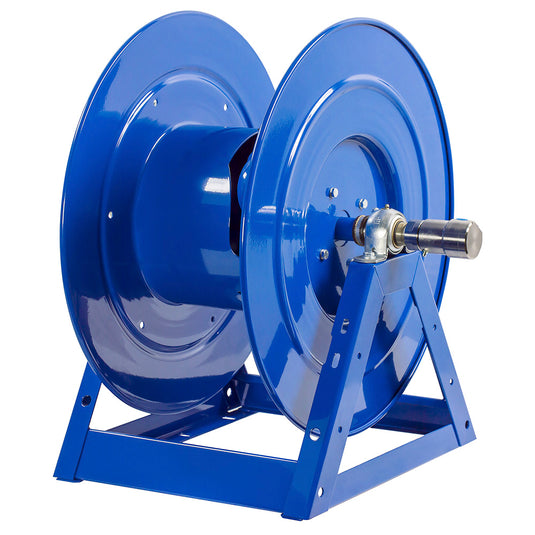

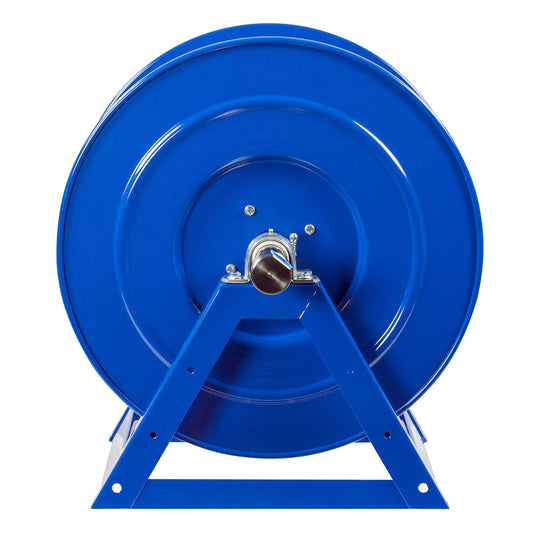

COXREELS® 1175 Series hand crank and motorized hose reels, like the 1125 Series, is an industry preferred design built with a larger chassis for larger hose capacities and hose diameters. They feature a sturdy one piece all welded "A" frame base, low profile outlet riser open drum slot design for smooth even hose wraps around the drum.
Features
Swivel
Nickel-plated steel 90° full-flow NPT swivel inlet
• Swivel Seals: AFLAS
NITRILE on stainless steel fluid path
• Available with stainless steel 304 fluid path
Design & Structure
All welded steel “A” frame construction for superior
reel structure
• Exclusive low profile outlet riser & open drum slot design
for flat smooth hose wrap
• Permanently lubricated self-aligning pillow block bearings
for trouble-free & smooth rotation
• Adjustable tension brake to prevent “free-wheeling”
during operation
• Long-handled locking pin to secure reel from rotation
during transport or storage
Retraction
Reliable chain & sprocket drive on motor driven models
• Solid steel direct hand crank with smooth round handle
• See Motor Options Chart
Signature Features
Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat process
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer’s limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
Possible Fields of Application
Water Trucks
• Construction Sites
• Fire Suppression
• Chemical Fluid Transfer
• Lubricant Dispensing
• Farming
• High-Flow Watering
• Chemical Fluid Transfer
Specifications
| Hose Inner Diameter (I.D.) | 1' |
| Hose Outer Diameter (O.D.) | 1 7/16" |
| Hose Length Capacity | 100FT |
| Inlet Swivel Assembly | 1" F NPT 90DEG |
| Outlet Riser | 1" F NPT |
| Max. PSI | 3,000 |
| Weight | 70 LBS. |
Warranty
2-year manufacturer warranty
