Description

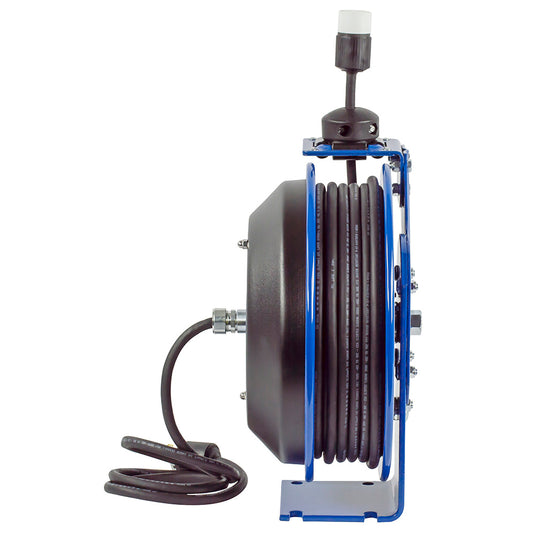

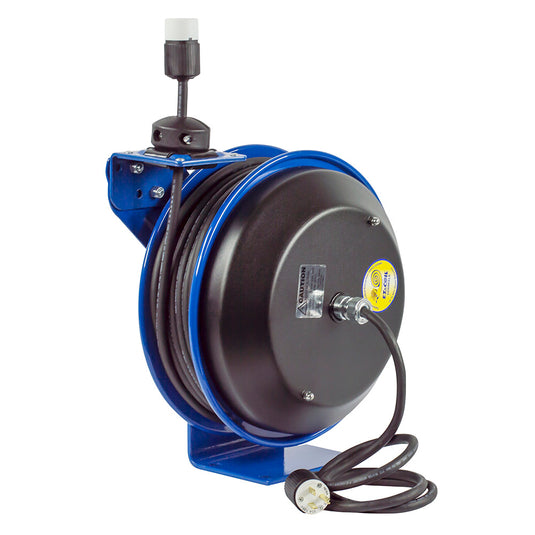

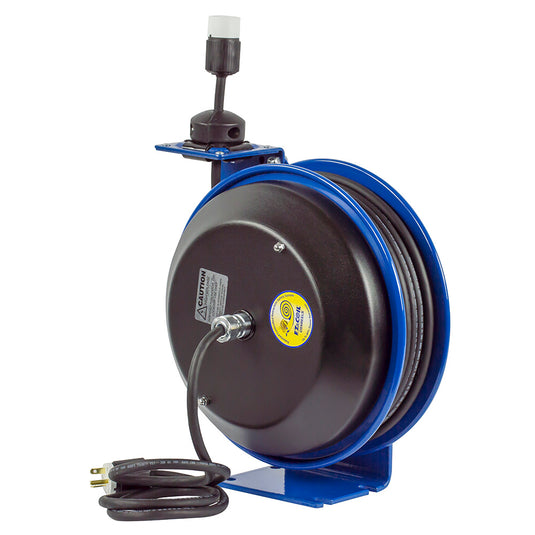

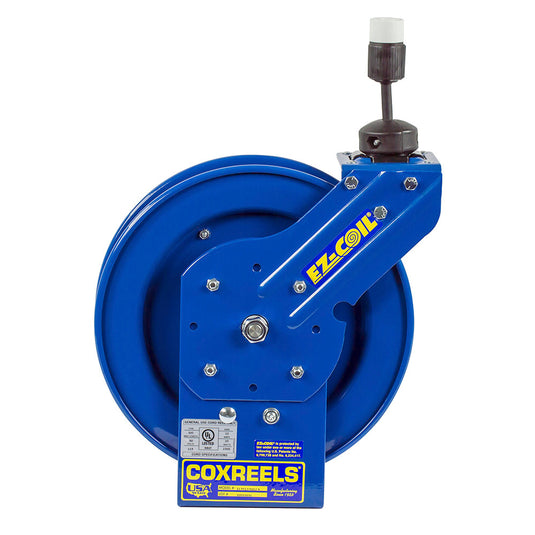

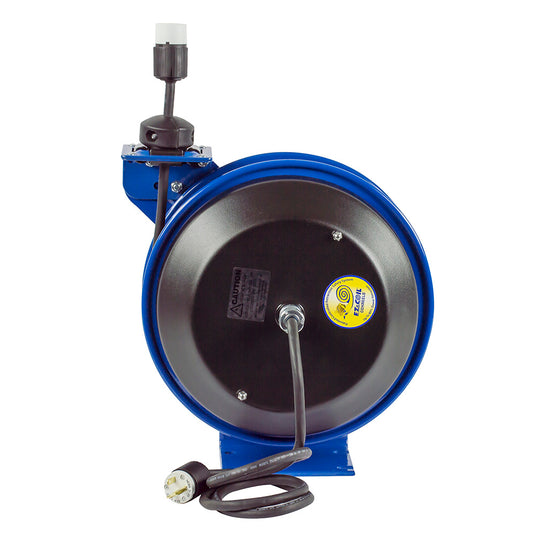

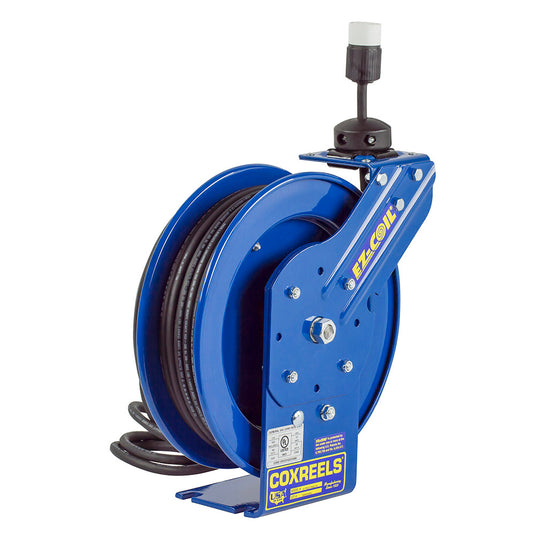

COXREELS® EZ-PC Series spring-driven "Power Cord" reels are heavy-duty, industrial-grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity, and efficiency. Modeled after the P and SH Series, the PC Series is designed for long-lasting, trouble-free performance even under the most demanding conditions.
Features
Slip Ring
• External heavy gauge CPC™ powder coated steel
components cover for simple slip ring routine maintenance
• Electrical current runs through a 25AMP / 300V rated
slip ring (30AMP / 600V on select models)
• Include 5' lead cable & grounding plug (except on less cord models)
• (On -4 & PC17 Models only) Include 5' lead cable & flying lead
Design & Structure
• Single pedestal cord reel with space saving design
facilitates workplace organization
• Guide arm adjusts to wall, floor & overhead positions
• Solid one piece, heavy gauge 1⁄4" steel base & support post
for maximum stability
• Coxreels’ exclusive Super Hub™ dual axle support system
on models with size index #3 & #4
• 1" solid steel axle & lubricated precision bearings for
smooth rotation
Retraction
• Controlled retraction speed up to 80% slower on
EZ-Coil® models
• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures cord at
desired length
Specifications
| AWG/No Cond. | 12/3 |
|
Cord Length |
50FT |
| Type | SJO |
| Volts | 115 |
| AMPS | 20 |
| Weight | 40 LBS. |
Warranty
2-year manufacturer warranty
