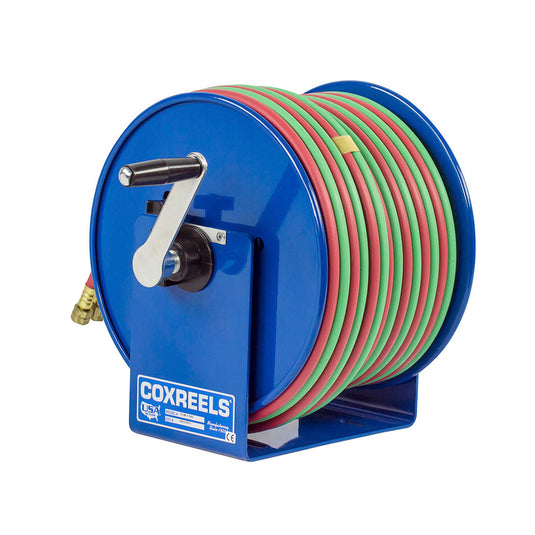

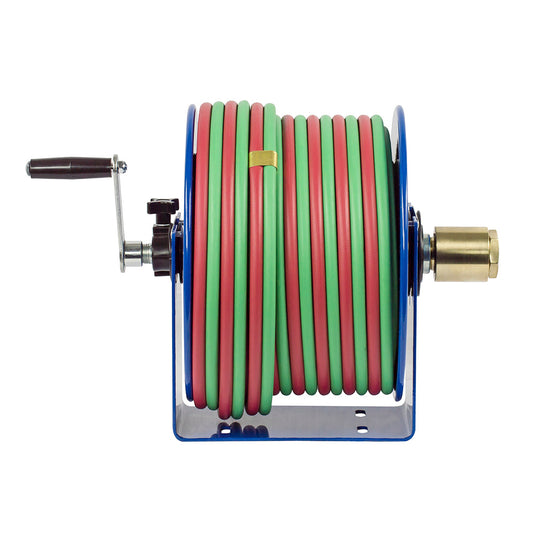

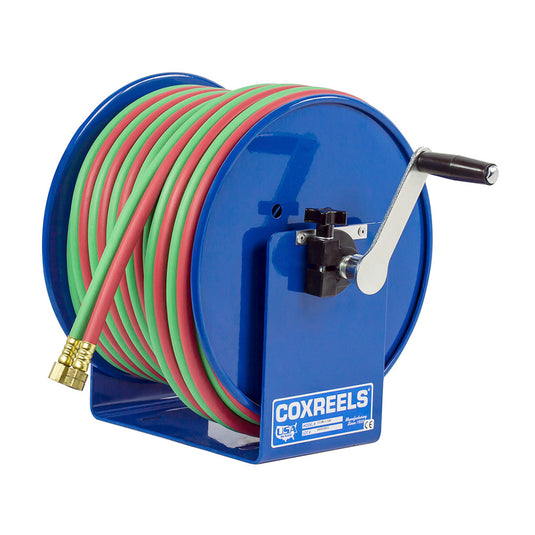

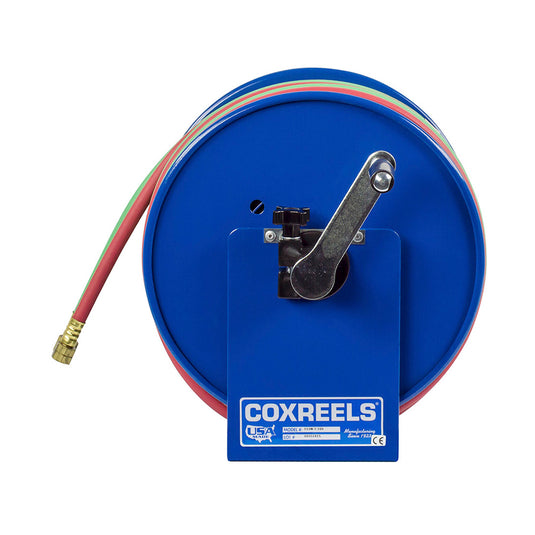

OXYGEN-ACETYLENE. Oxy-Acetylene welding hose with 9/16" – 18 UNF welding hose fittings.
Model: With Hose: 112W-1-100 (Without Hose: 112WL-1-100)
- Application: Welding
- Hose Inner Diameter (I.D.): 1/4"
- Hose Outer Diameter (O.D.): 1/4"
- Hose Length Capacity: 100'
- Hose Included: Yes
- Maximum PSI: 200
- Weight: 37 lbs
Overall Dimensions:
- Width (W): 18.75"
- Height (H): 13"
- Length (L): 12"
Mounting Pattern:
- M: 5.5"
- N: 3"
Base Dimensions:
- X: 9.5"
- Y: 6"
Description
COXREELS® 100W Series "Welding" hand crank hose reels are lightweight, compact, and versatile. Save time and effort while increasing the safety of your work environment. The sturdy "U" shaped frame and all-steel construction make this one tough little reel.
Features
-
Professional Grade Construction:
- Heavy-duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & supported worldwide.
Swivel:

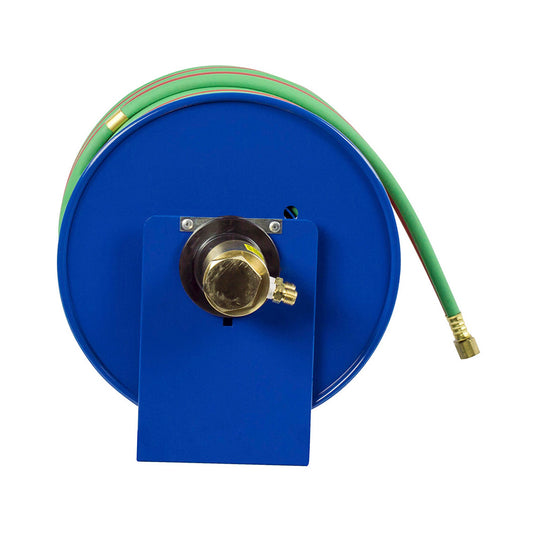

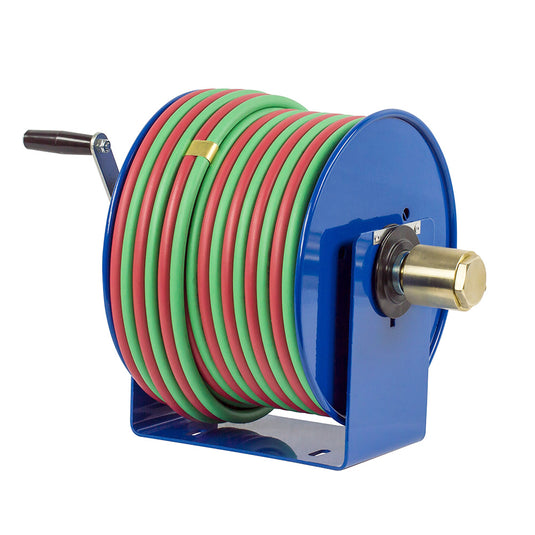

- External 90º full-flow dual ported brass swivel with VITON® seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
CNC Spun Discs:
- Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
U-Shaped Frame Design:
- Solid one-piece heavy gauge all steel U-shaped frame. Professional grade, compact, lightweight, and simple design.
Adjustable Tension Brake:
- Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free-wheeling during operation, transport, or storage.
Steel Construction:
- High-quality steel construction provides superior strength and durability for heavy-duty applications in commercial and industrial settings.
Design Options
Hand Crank Hose Reels
- Hand Crank: This is the simplest type of hose reel, where you manually turn a crank to reel in the hose. It's straightforward, cost-effective, and doesn't require a power source.
Air Motor Hose Reels
- AIR - #4 VANE / AIR - #6 VANE: These hose reels use air motors with vane-type mechanisms to rewind the hose. The numbers (#4 and #6) indicate the number of vanes or specific model types, which can affect performance and efficiency.
- Aluminum: Hose reels made from aluminum are lightweight, resistant to corrosion, and suitable for various environments.
- Cast Iron: Cast iron hose reels are very durable and sturdy, ideal for heavy-duty applications.
Electric Motor Hose Reels
- 12V DC 1/3 HP Reversible: Powered by a 12-volt direct current (DC) motor with a 1/3 horsepower (HP) rating. "Reversible" means the motor can run in both directions, allowing for easy unwinding and rewinding of the hose.
- 115V AC 1/2 HP EXP. Reversible: Uses a 115-volt alternating current (AC) motor with 1/2 HP. "EXP" likely indicates explosion-proof, meaning it's designed for use in hazardous environments where sparks could cause an explosion.
- 24V DC 1/2 HP EXP. Reversible: Similar to the 12V DC version but operates on 24 volts. Also explosion-proof and reversible.
- 24V DC 1/3 HP Reversible: Operates on 24 volts with a 1/3 HP rating, also reversible.
- 230V AC 1/2 HP EXP. Reversible: Uses a 230-volt AC motor with a 1/2 HP rating, explosion-proof, and reversible.
- AC Rectified: This means the AC current is converted to DC to power the motor, providing smoother operation.
Explosion Proof Hose Reels
- Explosion Proof: These hose reels are designed to prevent sparks that could ignite flammable substances, making them suitable for hazardous environments.
- Reversible: The motor can operate in both directions for convenient unwinding and rewinding.
Geared Hose Reels
- Beveled Geared Crank: Features a beveled gear mechanism to provide mechanical advantage, making it easier to reel in the hose manually.
Hydraulic Hose Reels
- Hydraulic Rewind: These hose reels use hydraulic power to rewind the hose. This type is typically used in heavy-duty applications where electric or manual reeling isn't practical.
Warranty
2-year manufacturer's limited warranty
